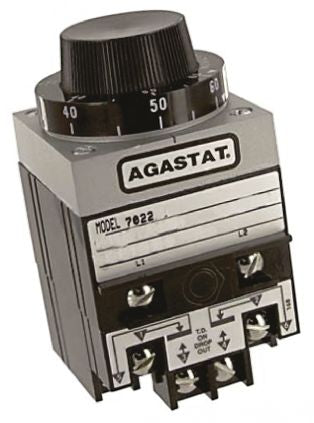

TE Connectivity Timer Relay, Screw, 1.5 → 15 s, DPDT [7022CC]; 782-1539
0₫
Mã kho: 7821539
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Time Range | 1.5 → 15 s |
Mounting Type | Panel Mount |
Current Maximum | 15 A |
Terminal Type | Screw |
Maximum Voltage | 30 V dc, 600 V ac |
Width | 65.3mm |
Length | 4.523in |
Depth | 2.832in |
Maximum Operating Temperature | +75°C |
Minimum Operating Temperature | -30°C |
Switch Configuration | DPDT |
