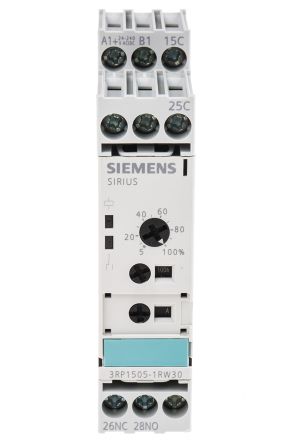

Siemens Multi Function Timer Relay, Screw, 0.05 → 1 h, DPDT, 2 Contacts, DPDT, 24 → 240 V ac/dc [3RP1505-1RW30]; 746-5120
by Siemens
0₫
Mã kho: 7465120
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 0.05 → 1 h |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 1 (dc) A, 3 (ac) A |
| Terminal Type | Screw |
| Minimum Voltage | 24 V ac/dc |
| Maximum Voltage | 250 V dc, 400 V ac |
| Length | 83mm |
| Depth | 90mm |
| Width | 22.5mm |
| Switch Configuration | DPDT |
