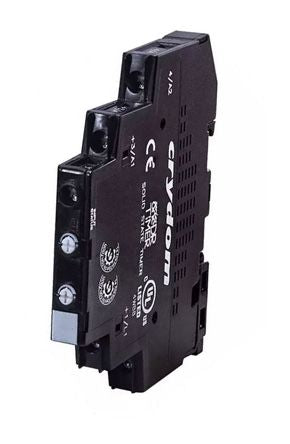

Sensata / Crydom Interval 1 Solid State Relay, Screw, 0.1 s → 100 h, SPNO, 2 Contacts, Solid State [DRTH06D06]; 144-5924
0₫
Mã kho: 1445924
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 12 → 24 V ac/dc |
Time Range | 0.1 s → 100 h |
Mode of Operation | Interval |
Mounting Type | DIN Rail |
Number of Timer Functions | Single |
Number of Contacts | 2 |
Series | SeriesOneDR |
Time Increment | Hours, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPNO |
Current Maximum | 0.25 |
Terminal Type | Screw |
Minimum Voltage | 12 V ac/dc |
Maximum Voltage | 24 V ac/dc |
Depth | 83mm |
Time Delay | 100 ms |
Width | 11mm |
Length | 87.7mm |
Minimum Operating Temperature | -30°C |
Switch Configuration | Solid State |
Maximum Operating Temperature | +80°C |
