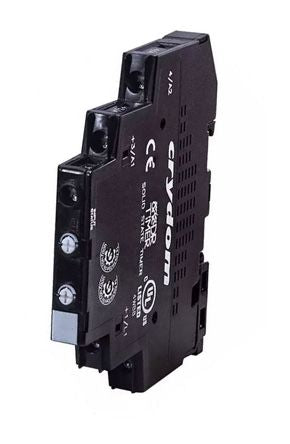

Sensata / Crydom Delay on Break 1 Solid State Relay, Screw, 0.1 s → 100 h, SPNO, 2 Contacts, Solid State [DRTC24A06R]; 144-5934
0₫
Mã kho: 1445934
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 180 → 240 V ac/dc |
| Time Range | 0.1 s → 100 h |
| Mode of Operation | Delay on Break |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Series | SeriesOneDR |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPNO |
| Current Maximum | 0.25 |
| Terminal Type | Screw |
| Minimum Voltage | 180 V ac/dc |
| Maximum Voltage | 240 V ac/dc |
| Width | 11mm |
| Depth | 83mm |
| Minimum Operating Temperature | -30°C |
| Length | 87.7mm |
| Switch Configuration | Solid State |
| Time Delay | 100 ms |
| Maximum Operating Temperature | +80°C |
