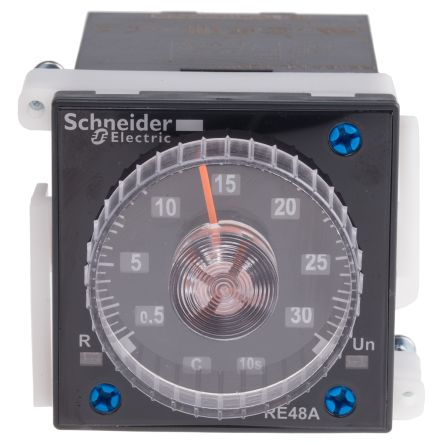

Schneider Electric Multi Function Time Delay Relay, Plug, 0.02 s → 300 h, DPDT, 2 Contacts [RE48AML12MW]; 914-8237
0₫
Mã kho: 9148237
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac/dc |
| Time Range | 0.02 s → 300 h |
| Mounting Type | Panel Mount |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Hours, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.208333333333333 |
| Terminal Type | Plug |
| Depth | 96.8mm |
| Length | 48mm |
| Time Delay | >=25 ms |
| Minimum Operating Temperature | -20°C |
| Contact Material | Silver Nickel |
| Width | 48mm |
| Maximum Operating Temperature | +50°C |
