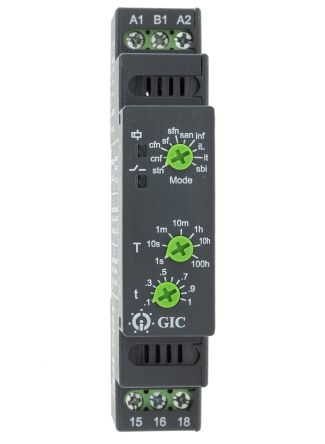

RS PRO Multi Function Time Delay Relay, Screw, 0.1 s → 100 h, SPDT, 1 Contacts, 12 → 240 V ac/dc; 178-3459
by RS PRO
0₫
Mã kho: 1783459
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 240 V ac/dc |
| Time Range | 0.1 s → 100 h |
| Mode of Operation | Accumulative Delay on Signal, Cyclic OFF/ON, Cyclic ON/OFF, Impulse ON/OFF, Interval, Leading Edge Bi-stable, Leading Edge Impulse, On Delay, Signal OFF Delay, Signal OFF/ON, Signal ON Delay, Trailing Edge Impulse |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 16 A |
| Terminal Type | Screw |
| Minimum Voltage | 12 V ac/dc |
| Maximum Voltage | 240 V ac/dc |
| Width | 65mm |
| Minimum Operating Temperature | -10°C |
| Depth | 85mm |
| Length | 18mm |
| Maximum Operating Temperature | +60°C |
| Switch Configuration | 1CO |
