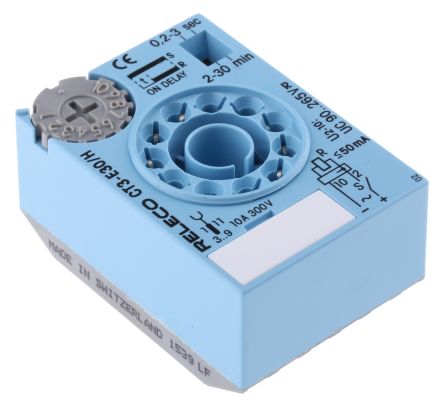

Releco ON Delay Single Timer Relay, 11-Pin Connector, 0.2 → 30 min, 0.2 → 30 s, 90 → 265 V ac/dc [CT3-E30 / H]; 459-4363
by Releco
0₫
Mã kho: 4594363
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 90 → 265 V ac/dc |
| Time Range | 0.2 → 30 min, 0.2 → 30 s |
| Mode of Operation | ON Delay |
| Mounting Type | Plug In |
| Number of Timer Functions | Single |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Terminal Type | 11-Pin Connector |
| Minimum Voltage | 90 V ac/dc |
| Maximum Voltage | 265 V ac/dc |
| Width | 35mm |
| Depth | 37mm |
| Minimum Operating Temperature | -25°C |
| Length | 50mm |
| Time Delay | <200 (Reset) ms |
| Maximum Operating Temperature | +60°C |
