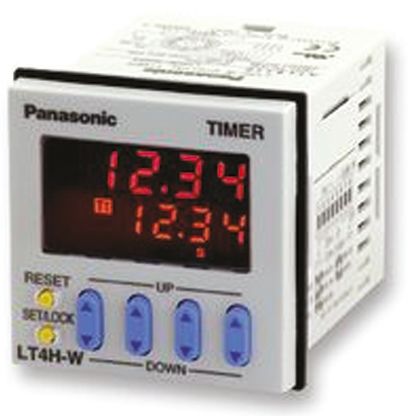

Panasonic Multi Function Timer Relay, 8-Pin Connector, 99.99 s → 9999 h, SPDT, 2 Contacts, SPDT [LT4HW8-DC24V]; 812-7881
by Panasonic
0₫
Mã kho: 8127881
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 12 → 24 V dc |
Time Range | 99.99 s → 9999 h |
Mode of Operation | Delay One Shot, Flicker OFF Start, Flicker ON Start |
Mounting Type | Flush Mount |
Number of Timer Functions | Multi Function |
Number of Contacts | 2 |
Time Increment | Hours, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.208333333333333 |
Terminal Type | 8-Pin Connector |
Maximum Operating Temperature | +50°C |
Time Delay | 0.5 s |
Depth | 48mm |
Switch Configuration | SPDT |
Minimum Operating Temperature | -10°C |
Contact Material | Silver Alloy |
Width | 70.1mm |
Length | 48mm |
