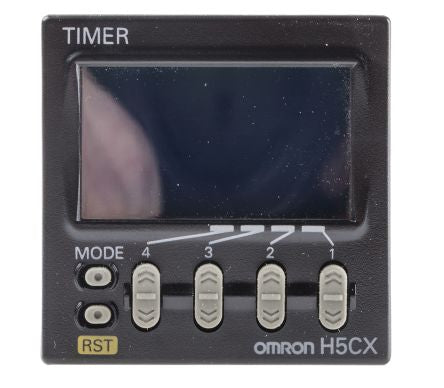

Omron Multi Function Timer Relay, 8-Pin Connector, 0.001 s → 9999 h, 1 Contacts, SPDT, 12 → 24 V ac/dc [H5CX-L8SD-N]; 687-6112
by Omron
0₫
Mã kho: 6876112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 24 V ac/dc |
| Time Range | 0.001 s → 9999 h |
| Mode of Operation | Flicker OFF Start 1, Flicker OFF Start 2, Flicker ON Start 1, Flicker ON Start 2 |
| Mounting Type | Panel Mount |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Series | H5CX |
| Time Increment | Hours, Seconds |
| Power Supply | External |
| Terminal Type | 8-Pin Connector |
| Maximum Operating Temperature | +55°C |
| Width | 48mm |
| Length | 48mm |
| Switch Configuration | SPDT |
| Depth | 63.7mm |
