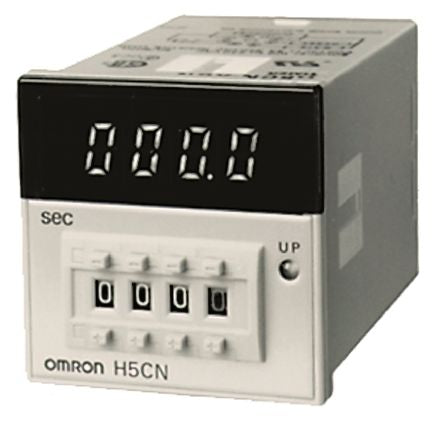

Omron ON Delay Single Time Delay Relay, 11-Pin Socket, 1 s → 99 min 59 s, 1 Contacts, SPDT [H5CN-XCNM AC100-240]; 746-3837
by Omron
0₫
Mã kho: 7463837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac, 100 → 240 V ac |
| Time Range | 1 s → 99 min 59 s |
| Mode of Operation | ON Delay |
| Mounting Type | DIN Track, Panel Mount, Surface Mount |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Current Maximum | 0.125 |
| Terminal Type | 11-Pin Socket |
| Minimum Voltage | 5 V dc |
| Maximum Voltage | 250 V ac |
| Depth | 97.4mm |
| Time Delay | 0.02 (External Reset) s, 0.5 (Power Off) s |
| Switch Configuration | SPDT |
| Length | 48mm |
| Contact Material | Gold Plated |
| Width | 48mm |
