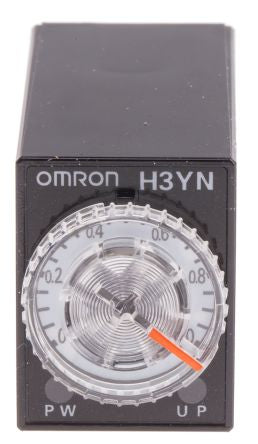

Omron Multi Function Timer Relay, Push In, 0.1 s → 10 min, 4NO/4NC, 8 Contacts, 4PDT, 24 V dc [H3YN-4-Z-B DC24]; 106-6270
by Omron
0₫
Mã kho: 1066270
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Time Range | 0.1 s → 10 min |
| Mode of Operation | Delay ON, Flicker OFF Start, Flicker ON Start |
| Mounting Type | Panel Mount |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 8 |
| Series | H3YN |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | 4NO/4NC |
| Current Maximum | 0.125 |
| Terminal Type | Push In |
| Maximum Voltage | 250 V ac |
| Depth | 28mm |
| Minimum Operating Temperature | -10°C |
| Length | 21.5mm |
| Width | 56.6mm |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +55°C |
| Switch Configuration | 4PDT |
