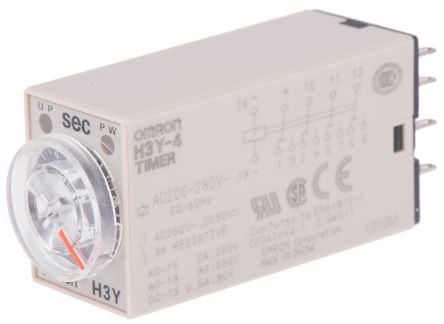

Omron ON Delay Single Timer Relay, 0.5 → 10 s, 4 Contacts, 4PDT, 200 → 230 V ac [H3Y-4 AC200-230 10S]; 340-601
by Omron
0₫
Mã kho: 340601
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 200 → 230 V ac |
Time Range | 0.5 → 10 s |
Mode of Operation | ON Delay |
Mounting Type | DIN Rail, Surface Mount |
Number of Timer Functions | Single |
Number of Contacts | 4 |
Series | H3Y-4 |
Time Increment | Seconds |
Power Supply | External |
Current Maximum | 0.208333333333333 |
Maximum Voltage | 250 V ac |
Length | 28mm |
Depth | 63mm |
Switch Configuration | 4PDT |
Time Delay | 0.1 s |
Width | 21.5mm |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -10°C |
