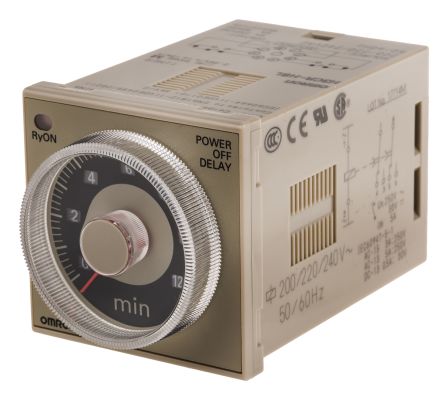

Omron OFF Delay Single Timer Relay, 8-Pin Connector, 0.05 → 12 min, 2 Contacts, DPDT, 200 → 240 V ac [H3CRH8LAC200240M]; 188-4629
by Omron
0₫
Mã kho: 1884629
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 200 → 240 V ac |
| Time Range | 0.05 → 12 min |
| Mode of Operation | OFF Delay |
| Mounting Type | DIN Rail, Flush Mount, Surface Mount |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Series | H3CR |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Current Maximum | 0.208333333333333 |
| Terminal Type | 8-Pin Connector |
| Maximum Voltage | 30 V dc, 250 V ac |
| Maximum Operating Temperature | +55°C |
| Depth | 93mm |
| Minimum Operating Temperature | -10°C |
| Length | 48mm |
| Width | 48mm |
| Switch Configuration | DPDT |
