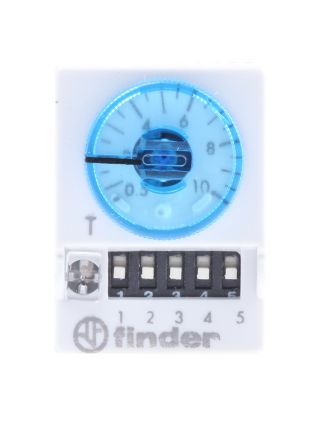

Finder Multi Function Timer Relay, 14-Pin Connector, 0.05 → 100 s, 3 → 100 min, 5 → 100 h, 4PDT [85.04.0.048.0000]; 159-537
by Finder
0₫
Mã kho: 159537
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 48 V ac/dc |
| Time Range | 0.05 → 100 s, 3 → 100 min, 5 → 100 h |
| Mode of Operation | Interval, On Delay, Pulse Delayed, Symmetrical Flasher |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 4 |
| Series | 85 Series |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | 4PDT |
| Current Maximum | 0.291666666666667 |
| Terminal Type | 14-Pin Connector |
| Maximum Voltage | 52.8 V ac/dc |
| Switch Configuration | 4PDT |
| Length | 63.1mm |
| Depth | 27.7mm |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -20°C |
| Time Delay | <=20 ms |
| Maximum Operating Temperature | +60°C |
| Width | 20.6mm |
