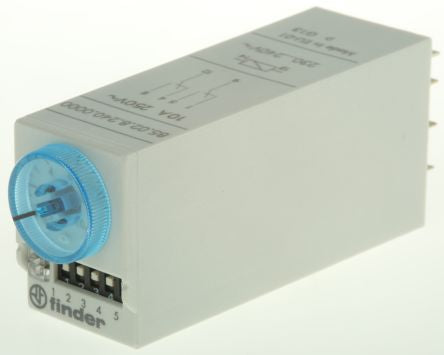

Finder Multi Function Timer Relay, 8-Pin Connector, 0.05 → 100 s, 3 → 100 min, 5 → 100 h, DPDT [85.02.8.240.0000]; 450-4720
by Finder
0₫
Mã kho: 4504720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 230 → 240 V ac/dc |
| Time Range | 0.05 → 100 s, 3 → 100 min, 5 → 100 h |
| Mode of Operation | Interval, ON Delay, Pulse Delay, Symmetrical Flash |
| Mounting Type | Snap-On |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | 85 Series |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 15 A |
| Terminal Type | 8-Pin Connector |
| Minimum Voltage | 250 V ac |
| Maximum Voltage | 400 V ac |
| Length | 59.5mm |
| Depth | 27.7mm |
| Contact Material | Silver Nickel |
| Minimum Operating Temperature | -20°C |
| Switch Configuration | DPDT |
| Time Delay | <=20 ms |
| Width | 20.6mm |
| Maximum Operating Temperature | +60°C |
