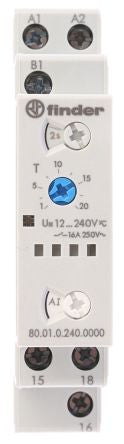

Finder Multi Function Timer Relay, Screw, 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 h, SPDT, 1 Contacts [80.01.0.240.0000]; 446-0327
by Finder
0₫
Mã kho: 4460327
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 240 V ac/dc |
| Time Range | 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 h |
| Mode of Operation | Interval, Interval with Control Signal ON, OFF Delay with Control Signal, ON & OFF Delay with Control Signal, ON Delay, Symmetrical Flash (Starting Pulse ON) |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Series | 80 Series |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 16A |
| Terminal Type | Screw |
| Minimum Voltage | 250 V ac |
| Maximum Voltage | 400 V ac |
| Depth | 60.8mm |
| Contact Material | Silver Cadmium Oxide |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Switch Configuration | SPDT |
| Time Delay | 100 ms |
| Length | 84mm |
| Width | 17.5mm |
