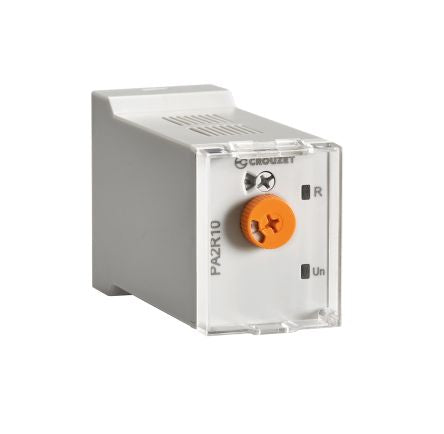

Crouzet Interval Multi Function Time Delay Relay, Plug In [PA2R10MV1]; 182-9966
by Crouzet
0₫
Mã kho: 1829966
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 240 V ac/dc |
| Time Range | 0.05 → 1 days, 0.05 → 1 h, 0.05 → 1 min, 0.5 → 10 days, 0.5 → 10 h, 0.5 → 10 min, 0.5 → 10 s |
| Mode of Operation | Interval |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Series | PA2R |
| Contact Configuration | SPDT |
| Current Maximum | 0.416666666666667 |
| Terminal Type | Plug In |
| Minimum Voltage | 12 V ac/dc |
| Maximum Voltage | 240 V ac/dc |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Depth | 53mm |
| Width | 82.31mm |
| Time Delay | 0.5 s |
| Switch Configuration | SPDT |
| Length | 35mm |
