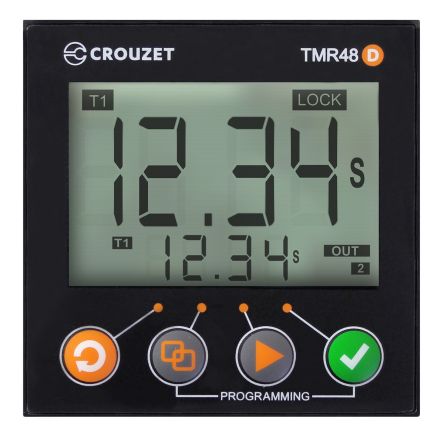

Crouzet 6 Timer Relay, Plug-In, SPDT, 1 Contacts, SPDT, 100 → 240 V ac/dc [MDE1R05MVA]; 166-3809
by Crouzet
0₫
Mã kho: 1663809
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 100 → 240 V ac/dc |
Time Range | 0.001 → 9.999 s, 0.01 → 99.99 s, 0.1 → 999.9 h, 0.1 → 999.9 min, 0.1 → 999.9 s, 1 min → 99 h 59 min, 1 s → 99 min 59 s, 1 → 9999 h, 1 → 9999 min, 1 → 9999 s |
Mode of Operation | Interval, Off Delay (Delay on Break), On Delay (Delay on Make), One Shot, Symmetrical Flashing (Off Start), Symmetrical Flashing (On Start) |
Mounting Type | Panel Mount |
Number of Timer Functions | Multi Function |
Number of Contacts | 1 |
Series | Syr-Line |
Time Increment | Hours, Minutes, Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.208333333333333 |
Terminal Type | Plug-In |
Minimum Voltage | 100 V ac/dc |
Maximum Voltage | 240 V ac/dc |
Depth | 68mm |
Maximum Operating Temperature | +60°C |
Switch Configuration | SPDT |
Width | 48mm |
Length | 48mm |
Minimum Operating Temperature | -10°C |
