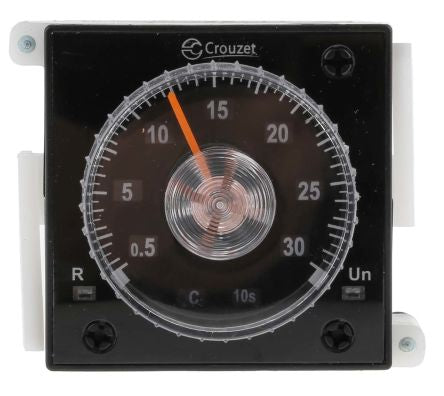

Crouzet Multi Function Timer Relay, 11-Pin Connector, 0.02 → 300 h, 0.02 → 300 min, 0.02 → 300 s [88886016]; 467-6869
by Crouzet
0₫
Mã kho: 4676869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 240 V dc, 24 → 240 V ac |
| Time Range | 0.02 → 300 h, 0.02 → 300 min, 0.02 → 300 s |
| Mode of Operation | A, AC, B, BW, C, G, W |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.208333333333333 |
| Terminal Type | 11-Pin Connector |
| Minimum Voltage | 12 V dc, 24 V ac |
| Maximum Voltage | 240 V ac/dc |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Length | 48mm |
| Switch Configuration | DPDT |
| Depth | 80mm |
| Width | 48mm |
