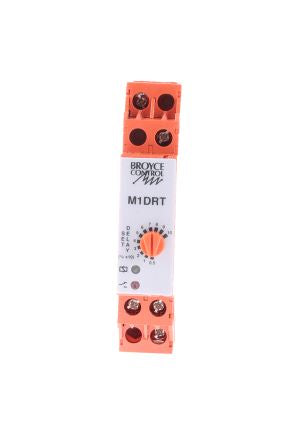

Broyce Control Auto Reset Timer Single Timer Relay, 2 → 60 s, SPDT, 1 Contacts, SPDT, 115 V ac [M1DRT 115VAC 2-60SECS/100M/S]; 362-4075
0₫
Mã kho: 3624075
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 115 V ac |
| Time Range | 2 → 60 s |
| Mode of Operation | Auto Reset Timer |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 1 |
| Series | MK7850N |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 0.333333333333333 |
| Maximum Voltage | 25 V dc, 250 V ac |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Switch Configuration | SPDT |
| Time Delay | 100 ms |
| Width | 17.5mm |
| Length | 89mm |
| Depth | 59mm |
