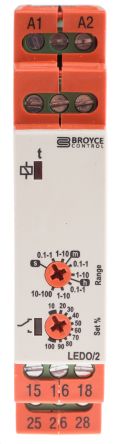

Broyce Control ON Delay Time Delay Relay, Screw, 0.1 s → 100 h, DPDT, 2 Contacts, DPDT, 12 → 230 V ac/dc [LEDO/2 12-230V AC/DC]; 914-4597
0₫
Mã kho: 9144597
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 12 → 230 V ac/dc |
| Time Range | 0.1 s → 100 h |
| Mode of Operation | ON Delay |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPDT |
| Current Maximum | 0.333333333333333 |
| Terminal Type | Screw |
| Minimum Voltage | 12 V ac/dc |
| Maximum Voltage | 230 V ac/dc |
| Length | 89mm |
| Depth | 66.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Switch Configuration | DPDT |
| Width | 17.5mm |
| Time Delay | 100 ms |
