![Broyce Control LEDF 24VAC/DC/230VAC. 0.5-10 Sec 8285192](http://nguyenxuong.com/cdn/shop/products/F8285192-01_389x444.jpg?v=1594016826)

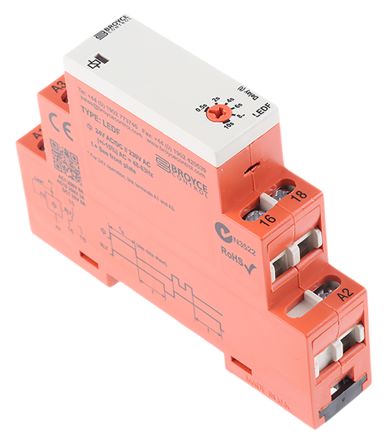

Broyce Control True Delay Off Single Timer Relay, Screw, 0.5 → 10 s, SPDT, 1 Contacts, SPDT, 230 V ac, 24 V ac/dc [LEDF 24VAC/DC/230VAC. 0.5-10 Sec]; 828-5192
0₫
Mã kho: 8285192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 24 V ac/dc, 230 V ac |
Time Range | 0.5 → 10 s |
Mode of Operation | True Delay Off |
Mounting Type | DIN Rail |
Number of Timer Functions | Single |
Number of Contacts | 1 |
Time Increment | Seconds |
Power Supply | External |
Contact Configuration | SPDT |
Current Maximum | 0.333333333333333 |
Terminal Type | Screw |
Width | 17.5mm |
Switch Configuration | SPDT |
Maximum Operating Temperature | +60°C |
Depth | 66.5mm |
Time Delay | 200 (Reset) ms |
Length | 89mm |
Minimum Operating Temperature | -20°C |
