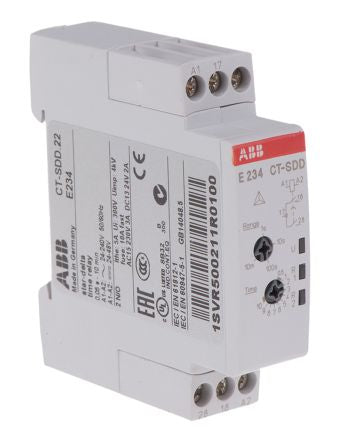

ABB Star Delta Single Timer Relay, 0.05 s → 10 min, DPNO, 2 Contacts, SPDT [1SVR500211R0100 - CT-SDD.22]; 185-025
by ABB
0₫
Mã kho: 185025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 → 240 V ac, 24 → 48 V dc |
| Time Range | 0.05 s → 10 min |
| Mode of Operation | Star Delta |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | DPNO |
| Current Maximum | 0.25 |
| Minimum Voltage | 12 V |
| Maximum Voltage | 250 V |
| Contact Material | Cadmium |
| Depth | 100mm |
| Switch Configuration | SPDT |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Length | 78mm |
| Minimum Operating Temperature | -20°C |
