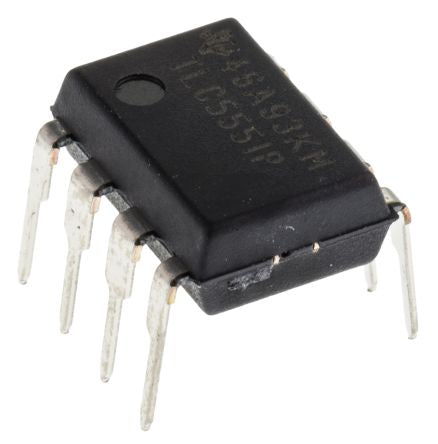

Texas Instruments TLC555IP, Timer Circuit 2MHz, 3 → 15 V, 8-Pin PDIP [TLC555IP]; 346-7024
0₫
Mã kho: 3467024
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Timer Type | Standard |
| Package Type | PDIP |
| Number of Internal Timers | 1 |
| Pin Count | 8 |
| Maximum Input Frequency | 2MHz |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 15 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Low Level Output Current | 100mA |
| Maximum High Level Output Current | -10mA |
| Height | 4.57mm |
| Length | 9.81mm |
| Dimensions | 9.81 x 6.35 x 4.57mm |
| Width | 6.35mm |
