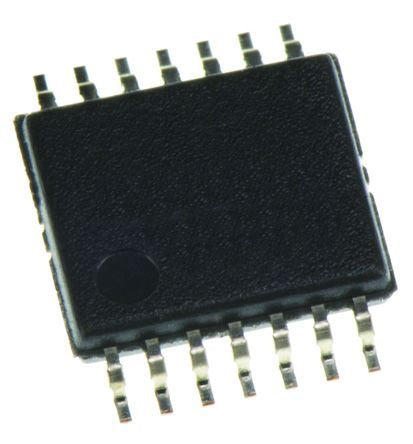

Texas Instruments CD4541BPW, Programmable Timer Circuit 6MHz, 14-Pin TSSOP [CD4541BPW]; 145-0940
0₫
Mã kho: 1450940
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Programmable |
| Package Type | TSSOP |
| Number of Internal Timers | 1 |
| Pin Count | 14 |
| Maximum Input Frequency | 6MHz |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 18 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Quiescent Current | 100µA |
| Maximum Low Level Output Current | 12.6mA |
| Maximum High Level Output Current | -12.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 18 μs @ 50 pF |
| Length | 5.1mm |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Width | 4.5mm |
| Propagation Delay Test Condition | 50pF |
| Height | 1.05mm |
