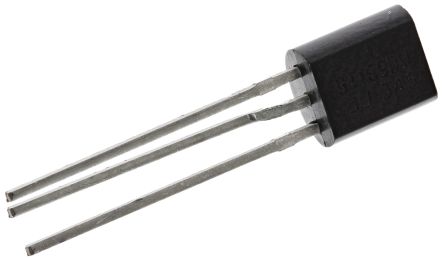

WeEn Semiconductors Co., Ltd, BT169D, Thyristor, 400V 0.5A, 0.2mA 3-Pin, SPT [BT169D]; 509-471
0₫
Mã kho: 509471
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.5A |
| Thyristor Type | SCR |
| Package Type | SPT |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 9A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 5mA |
| Pin Count | 3 |
| Length | 4.8mm |
| Width | 4.2mm |
| Height | 5.2mm |
| Dimensions | 4.8 x 4.2 x 5.2mm |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 400V |
| Peak On-State Voltage | 1.7V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.1mA |
