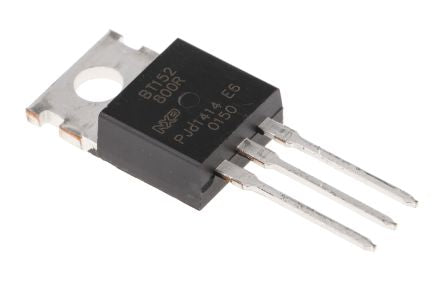

![WeEn Semiconductors Co., Ltd BT152-800R 4368114](http://nguyenxuong.com/cdn/shop/products/F4368114-01_444x281.jpg?v=1594101885)
NXP, BT152-800R, Thyristor, 800V 13A, 32mA 3-Pin, TO-220AB [BT152-800R]; 436-8114
0₫
Mã kho: 4368114
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Rated Average On-State Current | 13A |
Thyristor Type | SCR |
Package Type | TO-220AB |
Repetitive Peak Reverse Voltage | 800V |
Surge Current Rating | 220A |
Mounting Type | Through Hole |
Maximum Gate Trigger Current | 32mA |
Maximum Gate Trigger Voltage | 1.5V |
Maximum Holding Current | 60mA |
Pin Count | 3 |
Length | 10.3mm |
Width | 4.7mm |
Height | 9.4mm |
Dimensions | 10.3 x 4.7 x 9.4mm |
Maximum Operating Temperature | +125 °C |
Peak On-State Voltage | 1.75V |
Repetitive Peak Off-State Current | 1mA |
Minimum Operating Temperature | -40 °C |
Repetitive Peak Forward Blocking Voltage | 800V |
