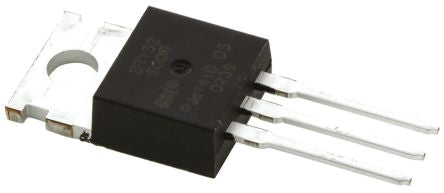

WeEn Semiconductors Co., Ltd, BT152-600R, Thyristor, 650V 13A, 32mA 3-Pin, TO-220AB [BT152-600R]; 262-488
0₫
Mã kho: 262488
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 13A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Repetitive Peak Reverse Voltage | 650V |
| Surge Current Rating | 220A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 32mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 60mA |
| Pin Count | 3 |
| Length | 10.3mm |
| Width | 4.7mm |
| Height | 9.4mm |
| Dimensions | 10.3 x 4.7 x 9.4mm |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 650V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 1mA |
| Peak On-State Voltage | 1.75V |
