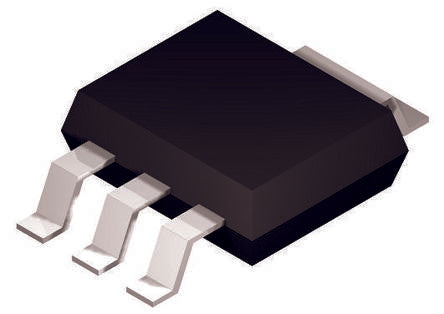

WeEn Semiconductors Co., Ltd, BT148W-600R, Thyristor, 600V 0.6A, 0.2mA 4-Pin, SOT-223 (SC-73) [BT148W-600R]; 484-5582
0₫
Mã kho: 4845582
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.6A |
| Thyristor Type | SCR |
| Package Type | SOT-223 (SC-73) |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 11A |
| Mounting Type | Surface Mount |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 6mA |
| Pin Count | 4 |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.7mm |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Peak On-State Voltage | 1.5V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.5mA |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 600V |
