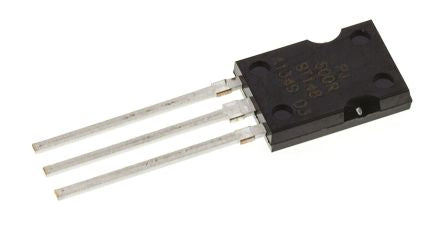

NXP, BT148-600R, Thyristor, 600V 2.5A, 0.2mA 3-Pin, SOT-82 [BT148-600R]; 284-882
0₫
Mã kho: 284882
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 2.5A |
| Thyristor Type | SCR |
| Package Type | SOT-82 |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 38A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 6mA |
| Pin Count | 3 |
| Length | 7.8mm |
| Width | 2.8mm |
| Height | 11.1mm |
| Dimensions | 7.8 x 2.8 x 11.1mm |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Peak On-State Voltage | 1.8V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.5mA |
| Minimum Operating Temperature | -40 °C |
