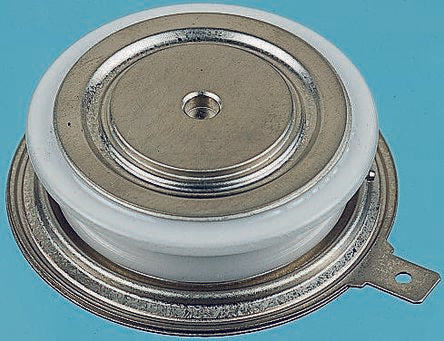

Vishay, VS-ST380CH06C1, Thyristor, 600V 960A, 200mA 3-Pin, TO-200AB [VS-ST380CH06C1]; 165-2655
by Vishay
0₫
Mã kho: 1652655
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 960A |
| Thyristor Type | PCT |
| Package Type | TO-200AB |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 13000A |
| Mounting Type | Screw Mount |
| Maximum Gate Trigger Current | 200mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 600mA |
| Pin Count | 3 |
| Length | 42mm |
| Width | 42mm |
| Height | 15.1mm |
| Dimensions | 42 x 42 x 15.1mm |
| Repetitive Peak Off-State Current | 100mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.58V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Operating Temperature | +150 °C |
