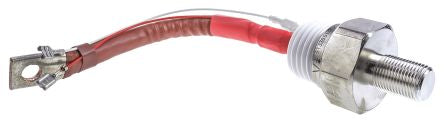

Vishay, VS-ST330S12P1PBF, Thyristor, 1200V 330A, 200mA 3-Pin, TO-118 [VS-ST330S12P1PBF]; 395-9309
by Vishay
0₫
Mã kho: 3959309
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 330A |
| Thyristor Type | SCR |
| Package Type | TO-118 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 9420A |
| Mounting Type | Stud |
| Maximum Gate Trigger Current | 200mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 600mA |
| Pin Count | 3 |
| Length | 49mm |
| Width | 42.5mm |
| Height | 74.5mm |
| Dimensions | 49 x 42.5 x 74.5mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Repetitive Peak Off-State Current | 50mA |
| Peak On-State Voltage | 1.52V |
| Minimum Operating Temperature | -40 °C |
