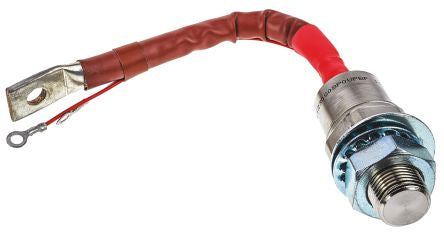

![Vishay VS-ST230S08P0VPBF 1652846](http://nguyenxuong.com/cdn/shop/products/F7005636-01_33bdb14f-b611-4694-9d4f-f3d740c3a28c_444x233.jpg?v=1594041187)
Vishay, VS-ST230S08P0VPBF, Thyristor, 800V 230A, 150mA 3-Pin, TO-93 [VS-ST230S08P0VPBF]; 165-2846
by Vishay
0₫
Mã kho: 1652846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Rated Average On-State Current | 230A |
Thyristor Type | SCR |
Package Type | TO-93 |
Repetitive Peak Reverse Voltage | 800V |
Surge Current Rating | 5970A |
Mounting Type | Thread Mount |
Maximum Gate Trigger Current | 150mA |
Maximum Gate Trigger Voltage | 3V |
Maximum Holding Current | 600mA |
Pin Count | 3 |
Length | 35mm |
Width | 30.33mm |
Height | 49.5mm |
Dimensions | 35 x 30.33 x 49.5mm |
Maximum Operating Temperature | +125 °C |
Repetitive Peak Forward Blocking Voltage | 800V |
Peak On-State Voltage | 1.55V |
Minimum Operating Temperature | -40 °C |
Repetitive Peak Off-State Current | 30mA |
