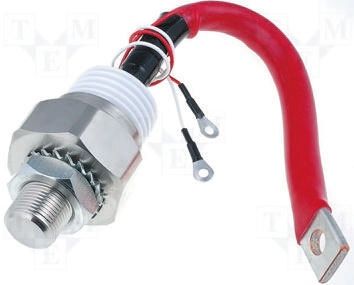

Vishay, VS-181RKI100PBF, Thyristor, 1000V 180A, 150mA 3-Pin, TO-93 [VS-181RKI100PBF]; 165-2844
by Vishay
0₫
Mã kho: 1652844
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 180A |
| Thyristor Type | PCT |
| Package Type | TO-93 |
| Repetitive Peak Reverse Voltage | 1000V |
| Surge Current Rating | 4000A |
| Mounting Type | Thread Mount |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 600mA |
| Pin Count | 3 |
| Length | 35mm |
| Width | 30.33mm |
| Height | 49.5mm |
| Dimensions | 35 x 30.33 x 49.5mm |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.35V |
| Repetitive Peak Off-State Current | 30mA |
| Repetitive Peak Forward Blocking Voltage | 1000V |
| Minimum Operating Temperature | -40 °C |
