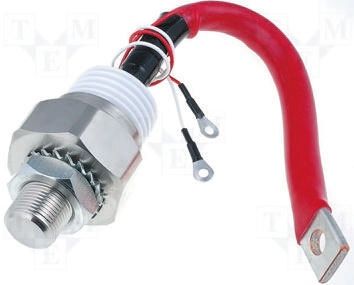

Vishay, VS-110RKI120PBF, Thyristor, 1200V 110A, 120mA 3-Pin, TO-94 [VS-110RKI120PBF]; 165-2886
by Vishay
0₫
Mã kho: 1652886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 110A |
| Thyristor Type | PCT |
| Package Type | TO-94 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 2180A |
| Mounting Type | Thread Mount |
| Maximum Gate Trigger Current | 120mA |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Holding Current | 200mA |
| Pin Count | 3 |
| Length | 29.5mm |
| Width | 27mm |
| Height | 188mm |
| Dimensions | 29.5 x 27 x 188mm |
| Repetitive Peak Off-State Current | 20mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.57V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
| Maximum Operating Temperature | +140 °C |
