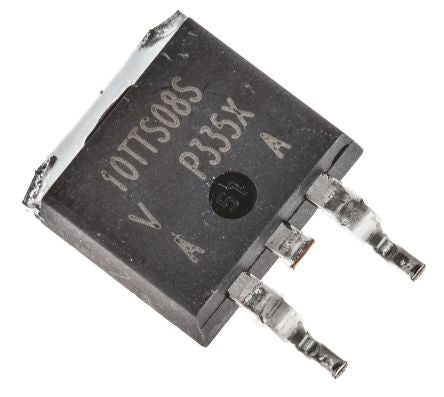

Vishay, VS-10TTS08S-M3, Thyristor, 800V 6.5A, 15mA 3-Pin, D2PAK (TO-263) [VS-10TTS08S-M3]; 167-465
by Vishay
0₫
Mã kho: 167465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 6.5A |
| Thyristor Type | SCR |
| Package Type | D2PAK (TO-263) |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 140A |
| Mounting Type | Surface Mount |
| Maximum Gate Trigger Current | 15mA |
| Maximum Gate Trigger Voltage | 1V |
| Maximum Holding Current | 30mA |
| Pin Count | 3 |
| Length | 10.67mm |
| Width | 9.65mm |
| Height | 4.83mm |
| Dimensions | 10.67 x 9.65 x 4.83mm |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.15V |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 0.05mA |
