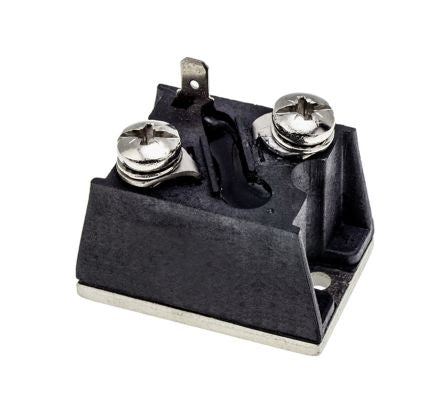

Vishay, T90RIA60, Thyristor, 600V 90A, 120mA 3-Pin, D 55 [T90RIA60]; 169-5957
by Vishay
0₫
Mã kho: 1695957
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 90A |
| Thyristor Type | SCR |
| Package Type | D 55 |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 1870A |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 120mA |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 200mA |
| Pin Count | 3 |
| Length | 41mm |
| Width | 27mm |
| Height | 25mm |
| Dimensions | 41 x 27 x 25mm |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 0.1mA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
