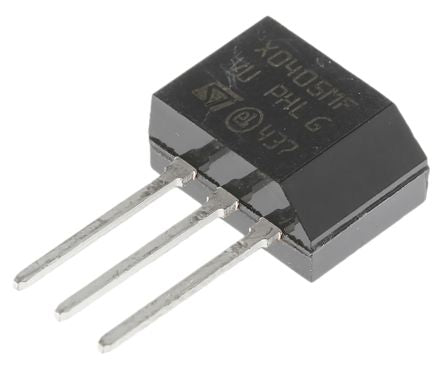

STMicroelectronics, X0405MF 1AA2, Thyristor, 600V 0.9A, 0.05mA 3-Pin, TO-202 [X0405MF 1AA2]; 687-1022
0₫
Mã kho: 6871022
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.9A |
| Thyristor Type | SCR |
| Package Type | TO-202 |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 33A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.05mA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 5mA |
| Pin Count | 3 |
| Length | 10.1mm |
| Width | 4.5mm |
| Height | 7.3mm |
| Dimensions | 10.1 x 4.5 x 7.3mm |
| Repetitive Peak Off-State Current | 0.005mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Peak On-State Voltage | 1.8V |
