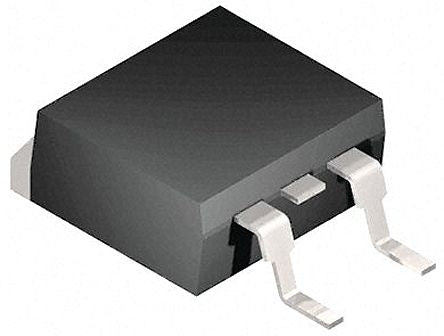

STMicroelectronics, TN4015H-6G-TR, Thyristor, 600V 25A, 15mA 2 + Tab-Pin, D2PAK [TN4015H-6G-TR]; 163-7336
0₫
Mã kho: 1637336
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 25A |
| Thyristor Type | SCR |
| Package Type | D2PAK |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 394A |
| Mounting Type | Surface Mount |
| Maximum Gate Trigger Current | 15mA |
| Maximum Gate Trigger Voltage | 1.3V |
| Maximum Holding Current | 60mA |
| Pin Count | 2 + Tab |
| Length | 10.28mm |
| Width | 9.35mm |
| Height | 4.6mm |
| Dimensions | 10.28 x 9.35 x 4.6mm |
| Maximum Operating Temperature | +150 °C |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 6mA |
| Off-State Voltage | 100V |
