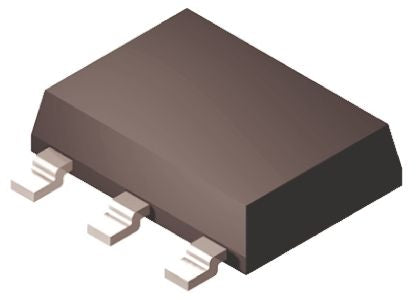

Littelfuse, MCR08BT1G, Thyristor, 200V 0.8A, 200μA 3+Tab-Pin, SOT-223 [MCR08BT1G]; 177-5218
by Littelfuse
0₫
Mã kho: 1775218
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 0.8A |
| Thyristor Type | SCR |
| Package Type | SOT-223 |
| Repetitive Peak Reverse Voltage | 200V |
| Surge Current Rating | 8A |
| Mounting Type | Surface Mount |
| Maximum Gate Trigger Current | 200µA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 5mA |
| Pin Count | 3+Tab |
| Length | 6.7mm |
| Width | 3.7mm |
| Height | 1.65mm |
| Dimensions | 6.7 x 3.7 x 1.65mm |
| Repetitive Peak Off-State Current | 200 μA @ Tj 110°C |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Operating Temperature | +110 °C |
| Peak On-State Voltage | 1.7V |
| Minimum Operating Temperature | -40 °C |
