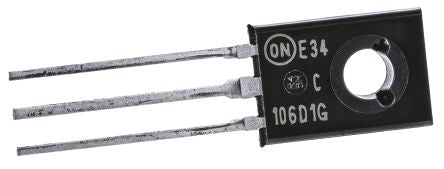

Littelfuse, C106D1G, Thyristor, 400V 2.55A, 0.2mA 3-Pin, TO-225 [C106D1G]; 103-2980
by Littelfuse
0₫
Mã kho: 1032980
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 2.55A |
| Thyristor Type | SCR |
| Package Type | TO-225 |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 20A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 3mA |
| Pin Count | 3 |
| Length | 7.74mm |
| Width | 2.66mm |
| Height | 11.04mm |
| Dimensions | 7.74 x 2.66 x 11.04mm |
| Maximum Operating Temperature | +110 °C |
| Repetitive Peak Off-State Current | 0.01mA |
| Peak On-State Voltage | 2.2V |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 400V |
