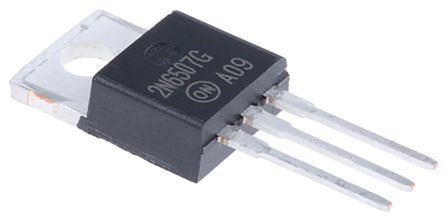

Littelfuse, 2N6507G, Thyristor, 400V 16A, 30mA 3-Pin, TO-220AB [2N6507G]; 103-2939
by Littelfuse
0₫
Mã kho: 1032939
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 16A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 250A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 30mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 40mA |
| Pin Count | 3 |
| Length | 10.28mm |
| Width | 4.82mm |
| Height | 9.28mm |
| Dimensions | 10.28 x 4.82 x 9.28mm |
| Repetitive Peak Off-State Current | 0.01mA |
| Peak On-State Voltage | 1.8V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 400V |
