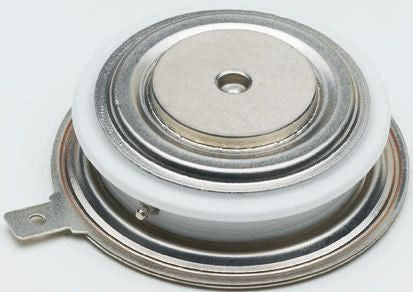

IXYS, N0992YS020-U9900, Thyristor, 200V 992A, 150mA 3-Pin [N0992YS020-U9900]; 168-4505
by IXYS
0₫
Mã kho: 1684505
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 992A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage | 200V |
| Surge Current Rating | 12100A |
| Mounting Type | Stud |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 3V |
| Maximum Holding Current | 500mA |
| Pin Count | 3 |
| Height | 15.1mm |
| Dimensions | 42 (Dia.) x 15.1mm |
| Maximum Operating Temperature | +125 °C |
| Diameter | 42mm |
| Repetitive Peak Forward Blocking Voltage | 200V |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.19V |
| Repetitive Peak Off-State Current | 40mA |
