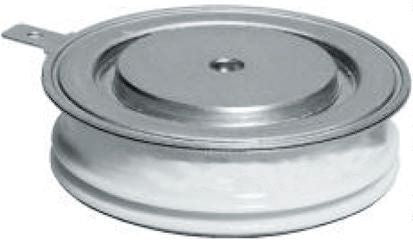

IXYS, N0795YN180, Thyristor, 1000 → 1800V 795A, 150mA [N0795YN180]; 825-2631
by IXYS
0₫
Mã kho: 8252631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 795A |
| Thyristor Type | PCT |
| Repetitive Peak Reverse Voltage | 1000 → 1800V |
| Surge Current Rating | 10500A |
| Mounting Type | Screw Mount |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 2.50V |
| Maximum Holding Current | 300mA |
| Height | 14mm |
| Dimensions | 42 (Dia.) x 14mm |
| Minimum Operating Temperature | -60 °C |
| Maximum Operating Temperature | +125 °C |
| Diameter | 42mm |
| Repetitive Peak Forward Blocking Voltage | 1000 → 1800V |
| Repetitive Peak Off-State Current | 30mA |
| Peak On-State Voltage | 2V |
