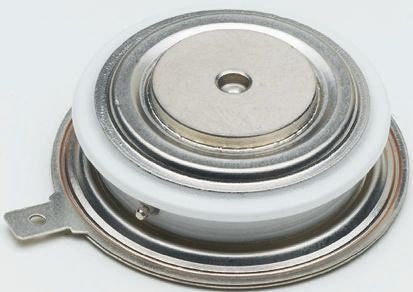

IXYS, N0465WN140, Thyristor, 1400 → 1600V 465A, 250mA [N0465WN140]; 146-1768
by IXYS
0₫
Mã kho: 1461768
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 465A |
| Thyristor Type | PCT |
| Repetitive Peak Reverse Voltage | 1400 → 1600V |
| Surge Current Rating | 5000A |
| Mounting Type | Screw Mount |
| Maximum Gate Trigger Current | 250mA |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 250mA |
| Height | 14mm |
| Dimensions | 42 (Dia.) x 14mm |
| Repetitive Peak Off-State Current | 50mA |
| Maximum Operating Temperature | +125 °C |
| Diameter | 42mm |
| Minimum Operating Temperature | -60 °C |
| Repetitive Peak Forward Blocking Voltage | 1400 → 1600V |
| Peak On-State Voltage | 2.09V |
