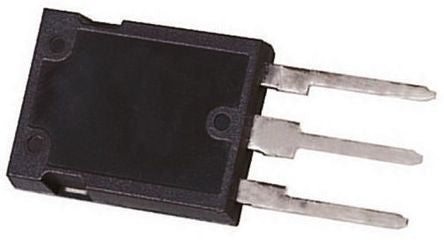

IXYS, CS45-16io1R, Thyristor, 1600V 48A, 200mA 3-Pin, ISOPLUS247 [CS45-16IO1R]; 920-0883
by IXYS
0₫
Mã kho: 9200883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 48A |
| Thyristor Type | SCR |
| Package Type | ISOPLUS247 |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 560A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 200mA |
| Maximum Gate Trigger Voltage | 1.6V |
| Maximum Holding Current | 100mA |
| Pin Count | 3 |
| Length | 16.13mm |
| Width | 5.21mm |
| Height | 21.34mm |
| Dimensions | 16.13 x 5.21 x 21.34mm |
| Peak On-State Voltage | 1.64V |
| Repetitive Peak Off-State Current | 5mA |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Maximum Operating Temperature | +140 °C |
