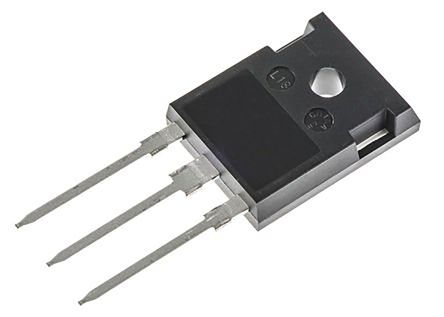

IXYS, CS45-08io1, Thyristor, 800V 48A, 200mA 3-Pin, TO-247AD [CS45-08io1]; 761-3997
by IXYS
0₫
Mã kho: 7613997
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Rated Average On-State Current | 48A |
Thyristor Type | SCR |
Package Type | TO-247AD |
Repetitive Peak Reverse Voltage | 800V |
Surge Current Rating | 560A |
Mounting Type | Through Hole |
Maximum Gate Trigger Current | 200mA |
Maximum Gate Trigger Voltage | 1.6V |
Maximum Holding Current | 100mA |
Pin Count | 3 |
Length | 16.24mm |
Width | 5.3mm |
Height | 21.45mm |
Dimensions | 16.24 x 5.3 x 21.45mm |
Maximum Operating Temperature | +140 °C |
Minimum Operating Temperature | -40 °C |
Repetitive Peak Forward Blocking Voltage | 800V |
Repetitive Peak Off-State Current | 5mA |
Peak On-State Voltage | 1.64V |
