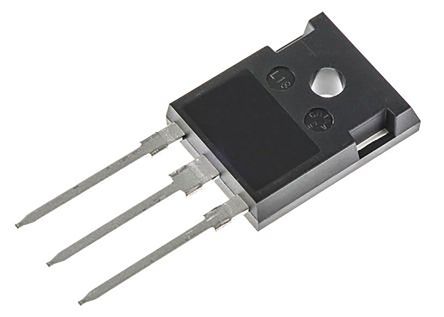

IXYS, CS20-16IO1, Thyristor, 1600V 19A, 65mA 3-Pin, TO-247AD [CS20-16IO1]; 168-4495
by IXYS
0₫
Mã kho: 1684495
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Rated Average On-State Current | 19A |
Thyristor Type | SCR |
Package Type | TO-247AD |
Repetitive Peak Reverse Voltage | 1600V |
Surge Current Rating | 215A |
Mounting Type | Through Hole |
Maximum Gate Trigger Current | 65mA |
Maximum Gate Trigger Voltage | 1V |
Maximum Holding Current | 100mA |
Pin Count | 3 |
Length | 16.26mm |
Height | 21.46mm |
Repetitive Peak Forward Blocking Voltage | 1600V |
Repetitive Peak Off-State Current | 2mA |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Peak On-State Voltage | 2.1V |
