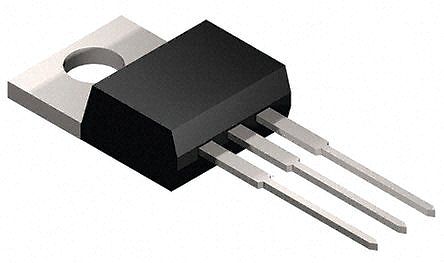

IXYS, CLA30E1200PB, Thyristor, 1200V 30A, 50mA 3+Tab-Pin, TO-220 [CLA30E1200PB]; 135-8212
by IXYS
0₫
Mã kho: 1358212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 30A |
| Thyristor Type | SCR |
| Package Type | TO-220 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 325A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 50mA |
| Maximum Gate Trigger Voltage | 1.6V |
| Maximum Holding Current | 60mA |
| Pin Count | 3+Tab |
| Length | 10.66mm |
| Width | 4.82mm |
| Height | 16mm |
| Dimensions | 10.66 x 4.82 x 16mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Forward Blocking Voltage | 1200V |
