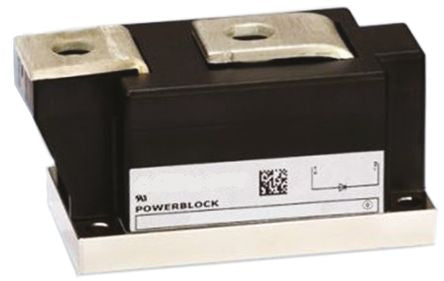

Infineon, TZ425N16KOFHPSA1, Thyristor, 1600V 425A, 250mA 5-Pin, BG-PB501-1 [TZ425N16KOFHPSA1]; 165-5402
by Infineon
0₫
Mã kho: 1655402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 425A |
| Thyristor Type | PCT |
| Package Type | BG-PB501-1 |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 14500A |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 250mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 300mA |
| Pin Count | 5 |
| Length | 101mm |
| Width | 50mm |
| Height | 52mm |
| Dimensions | 101 x 50 x 52mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 80mA |
| Peak On-State Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 1800V |
| Minimum Operating Temperature | -40 °C |
